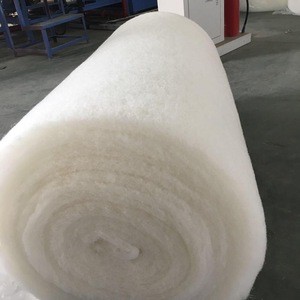

The glue-free waddings produced by WJM-2 Nonwoven Glue free padding Production Line(WJM-2 Nonwoven thermo bonded wadding production line) is replacement of sponge, used forexclusive mattress, sofa cushion, tatami, filtering material and acoustic feltetc. The glue-free waddings dryer adopts stainless steel chain plate structure.

1) Opening and blending with accurate control of fiber percentages in the blend.

2) Carding machines with high output and excellent quality of design and engineering. Yingyang weight control systems ensure constant web weights with little weight variations. All cards are fitted with regulated air flow and dust control/extraction units.

3) Yingyang cross lappers with advanced control system and are of various types to meet specific customer requirements.

4) The controlled ducted blowing system ensures the uniformity of air circulation and consistent product quality;

5) The internal heat circulation system and excellent machine insulation greatly reduces the energy consumption and thus lowers production cost;

6) Multi - choice heating systems are available to meet the needs of customers in different regions and fuel types available;

Main Features

Part Machine No.1

Name: Electrical Bale Opener

Model: KBJ-1

Machine Width: 1m

Capacity: 15-120kg/h

Power:4.5kW

Function: Two sets bale opener can mix two different raw fiber in proportion.

Part Machine No.2

Name: Opening Machine
Model: HFK-1380/HFD-1380
Specification: coarse opening raw fiber, equipped with comb roller; fine opening fiber again with nail roller.

Part Machine No.3

Name: Cotton Feeder
Model: HFH-2
Usage: Suitable for intensively mixing the opened fiber and feed to the next working procedure.

Part Machine No.4

Name: Single Cylinder Double Doffer with Random Roller Carding Machine
Model: HFJ-18
Usage: Suitable for card terylene, polypropylene fiber, bicomponent fiber;Cylinder,doffer,work roller,stripping roller, random roller are all with thermal refining and precision finishing

Part Machine No.5

Name: Cross lapper
Model: HFJ-250
Usage: for laying the carded fiber to certain thick and wide fiber sheet for next working procedure.

Part Machine No.6

Name: Heating Oven
Model: SYG-2800
Usage: The oven has two modes for heating: conduction oil hydronic heating and burner heating.But this one is equipped with natural gas heating burner.

Part Machine No.7

Name: Calander
Model: TGJ-2800
Usage: The machine can be two high vertical type with hot oil heater, or special can be made as three roller type.

Part Machine No.8

Name: Edge Trimming and Coiling Machine
Model: JRJ-1
Usage: The machine is photoelectric controlled, with electric length counter, electric bell for warning,four score cutters( air cylinder pressurizing) and resistance wire air cylinder cross cutter.
